Cooling fan mount kit V2 for A12X

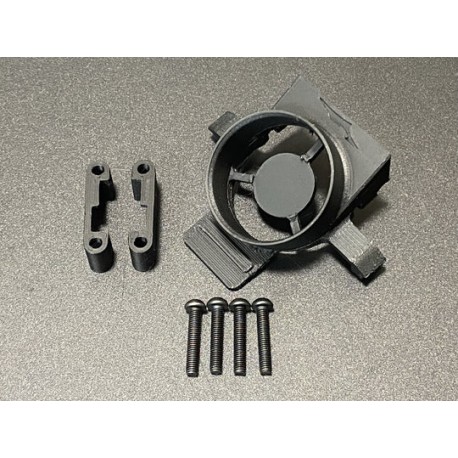

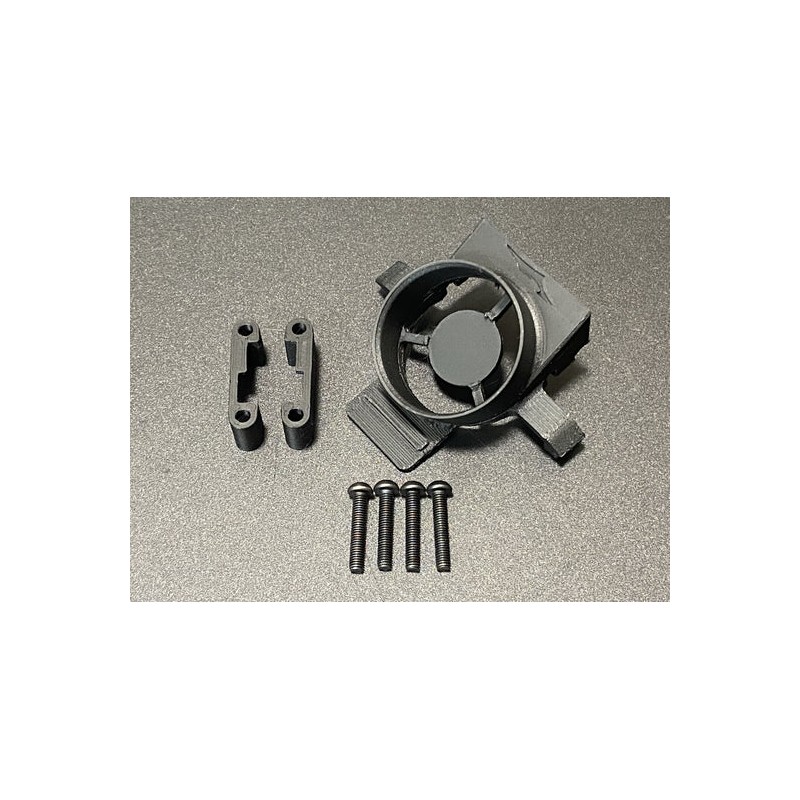

This is the Cooling Fan Mount Kit V2 for the Awesomatix A12X.

Compared to the previous version (AW-043/044), the following improvements have been made:

1) The mounting method has been changed to a sliding design; combined with the use of a rubber band, it is now less likely to come loose due to impacts during a run.

2) A guide section for the fan motor has been added, making it easier to center the fan motor.

3) The inner diameter of the air inlet has been enlarged, and the height increased. Please note that this makes it slightly more prone to interfering with the body shell, so please check for clearance.

You will need to provide a commercially available 30mm cooling fan and perform some simple modifications to install it. Please refer to the link below for modification instructions.

Cooling Fan Modification Instructions

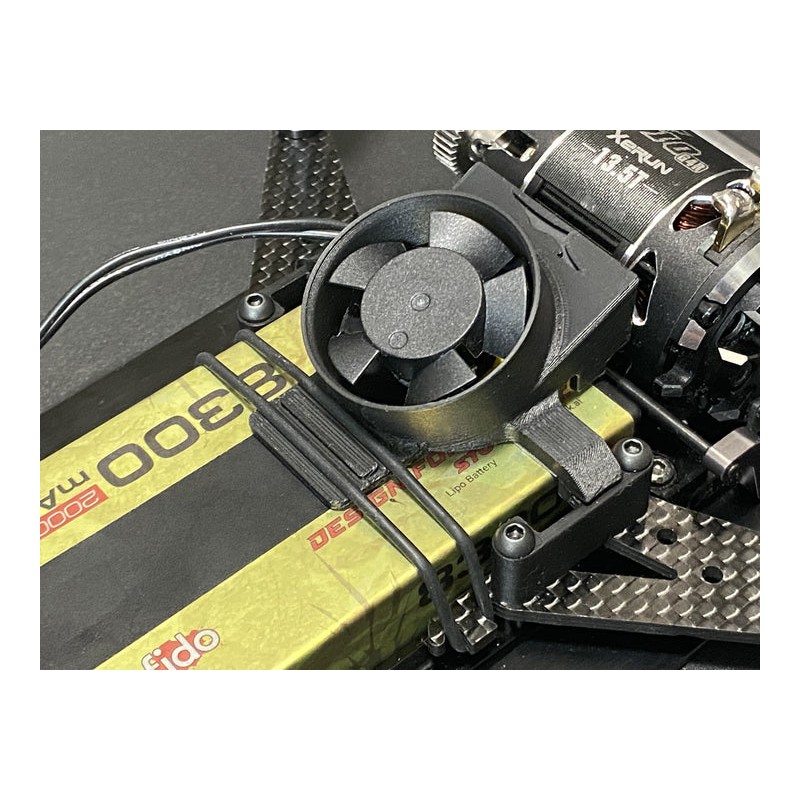

Use the included screws to secure the bracket together with the body mount plate (please pay attention to the orientation).

Insert the fan mount into the bracket and slide it toward the rear to lock it in place. Then, secure the front tab using the rubber band. Since no screws are used for this step, battery changes can be performed quickly. Please use the rubber band included with the kit or the AW-023.

This product is designed exclusively for the A12X. It cannot be used with the older A12 or A12WC models.
